LP625EG10

Mars Max

LP625EG1, LP625EG2, LP625EG3, LP625EG4, LP625EG5, LP625EG6, LP625EG7, LP625EG8, LP625EG9, LP625EG10, LP625SG1, LP625SG2, LP625SG3, LP625SG4

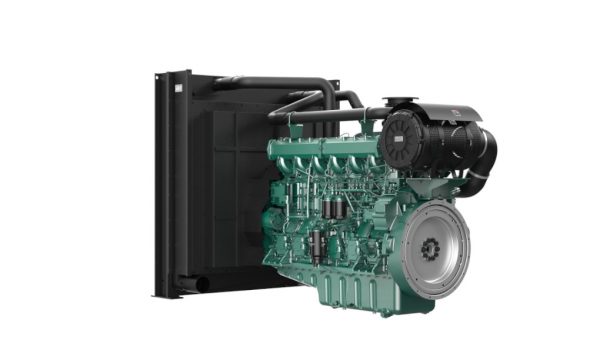

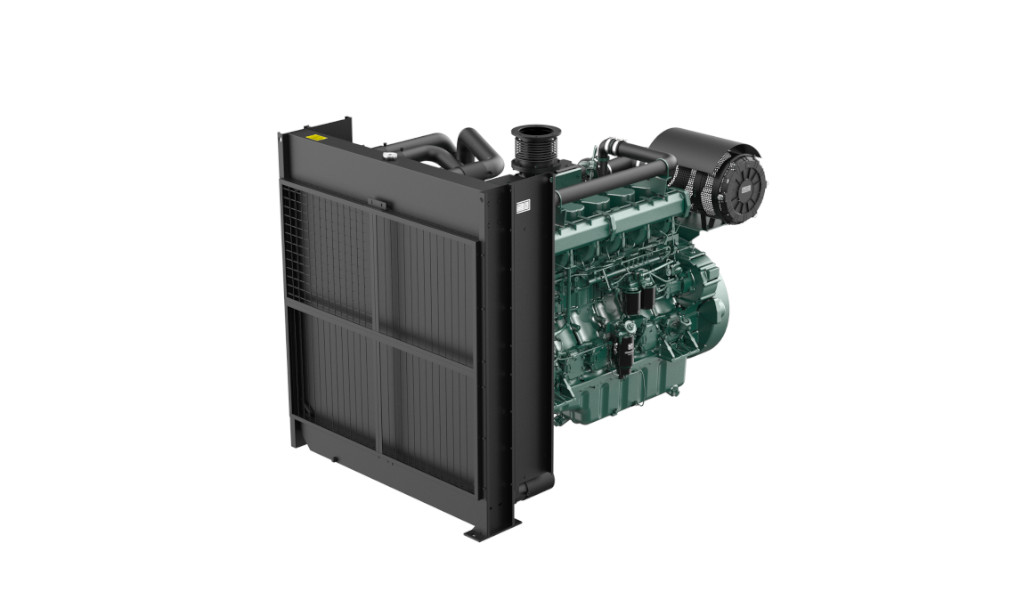

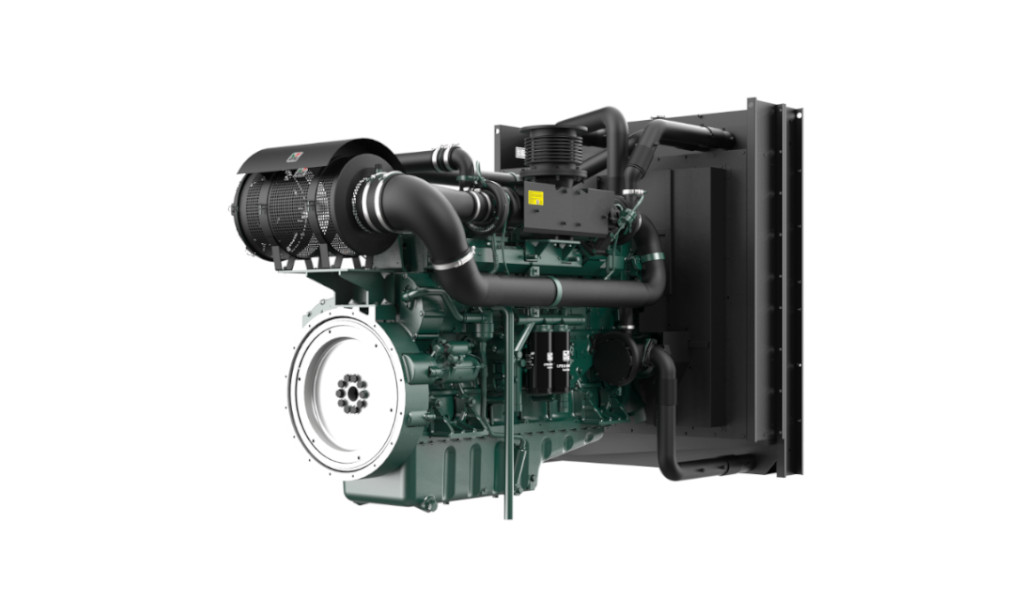

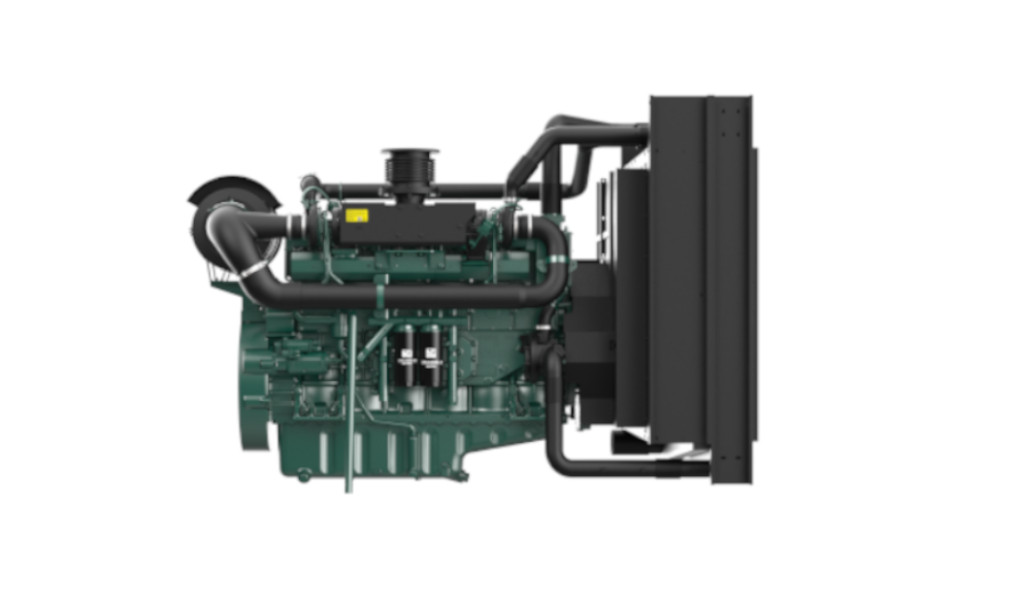

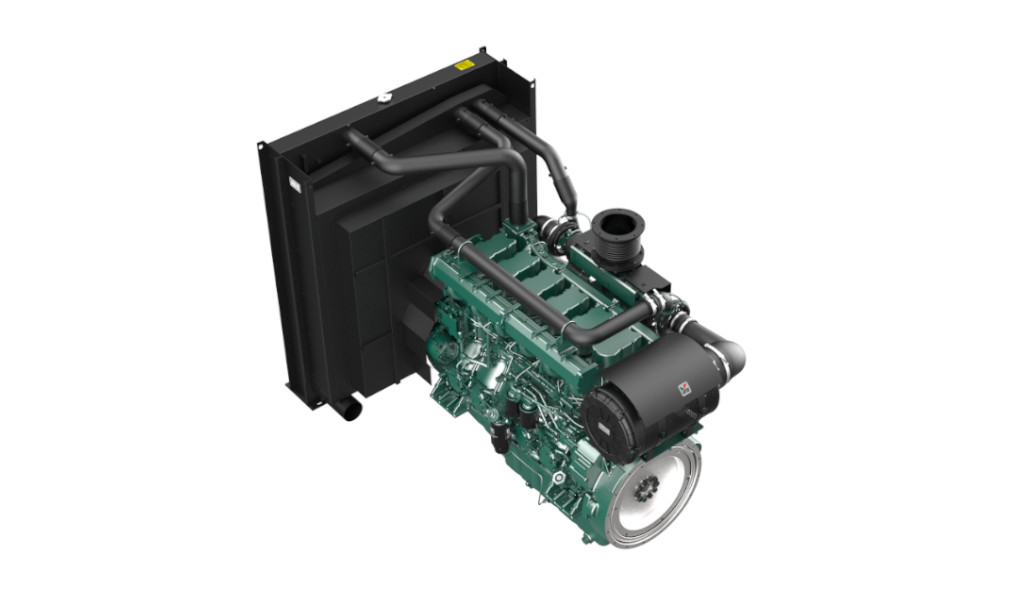

The six-cylinder MARS MAX series produce power in the 460kW to 800kW range at either 1500 or 1800rpm. These series-turbocharged engines feature a compact single air cleaner making overall height only 1659mm. Liebherr common rail fuel with ECU injection system or Electronic unit pump injection system delivers class leading power.

• Series-turbocharging allows high altitude operation at up to 5000m, with no more than a 30% derate when above 4500m
• Can operate at temperatures down to minus 35ºC
• Fuel and emissions efficient electronic high voltage common rail injection
• 500 hours service intervals (depending on working conditions)
• Low single air cleaner to help reduce package size.

Fixed Speeds
1500 r/min

Maximum Power

1500 r/min—880-968kW

Injection : Liebherr Common Rail with ECU
